PHOTOVOLTAIC SOLAR (PV) CABLES

Description

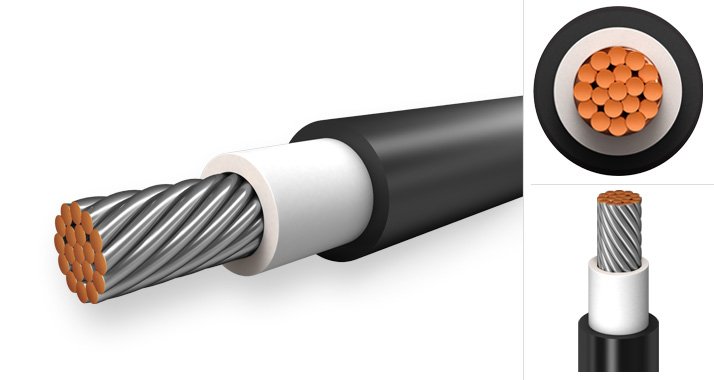

Photovoltaic solar cables offers the following construction:

• Conductor: High-quality annealed flexible tinned copper conductors.
• Insulation: Halogen-free, cross-linked flame retardant compound (HFFR).
• Outer Sheath: Black Halogen-free, cross-linked flame retardant compound (HFFR).

Technical Specifications:

• Operating voltage of 1.0 KVAC , 1.5 KVDC
• Maximum operating voltage of 1.2 KVAC , 1.8 KVDC
• Ambient temperature ranges from -40°C to +90°C
• Short circuit temperature is 250°C.
• Resistant to impact tear and abrasion.
• Weathering-UV resistance.
• very good resistance to oil and chemicals with acid and alkaline resistance
